    Golf simulator bay design starts with a shared drawing. Use this fit-out checklist to brief the installer and confirm how the screen, lighting, power, sound and equipment will work together. If you still need to establish whether the room can fit a swing, start with the single-bay room check.

    Ask every installer to return the same information: finished dimensions, the selected impact system, equipment mounting, projector and power positions, ventilation, sound treatment and access to replace consumables. At handover, check swing clearance, screen rebound, lighting, staff controls and a live booking. Record the party responsible for fixing each issue.

    This guide treats golf simulator bay design as a sequence of trade-offs: floor space and ceiling height first, then screens and impact surfaces, then sensors, sound, seating and spend. The order matters, because the expensive mistakes happen early. The wider commercial context sits in our UK golf simulator market briefing.

    Space and safety margins in golf simulator bay design

    Start with the swing, not the screen. A bay must let the tallest customer swing a driver flat out without a thought for the ceiling, the side walls or anyone waiting behind. That means generous ceiling height, honest width for right and left handed players, and enough depth to leave circulation space behind the hitting position. Operators who squeeze bays into low rooms learn the lesson the expensive way: a bay that only suits irons excludes the customers who most want to hit driver indoors in January.

    Keep the swing area and any path a mishit could take clear of customers and staff. Commission the complete enclosure, screen and impact protection with the installer, and test how they work together before public use. Record hazards, controls and inspection responsibilities in the site’s risk assessment. HSE’s workplace risk assessment guidance.

    Screens, impact surfaces and projection

    In golf simulator bay design, specify the impact screen and enclosure together. Follow the supplier’s requirements for screen suspension and clearance behind it, and ask the installer to demonstrate how the setup contains mishits and reduces rebound. Include the screen, sides, top and hard structural edges in the risk assessment. HSE’s risk assessment guidance.

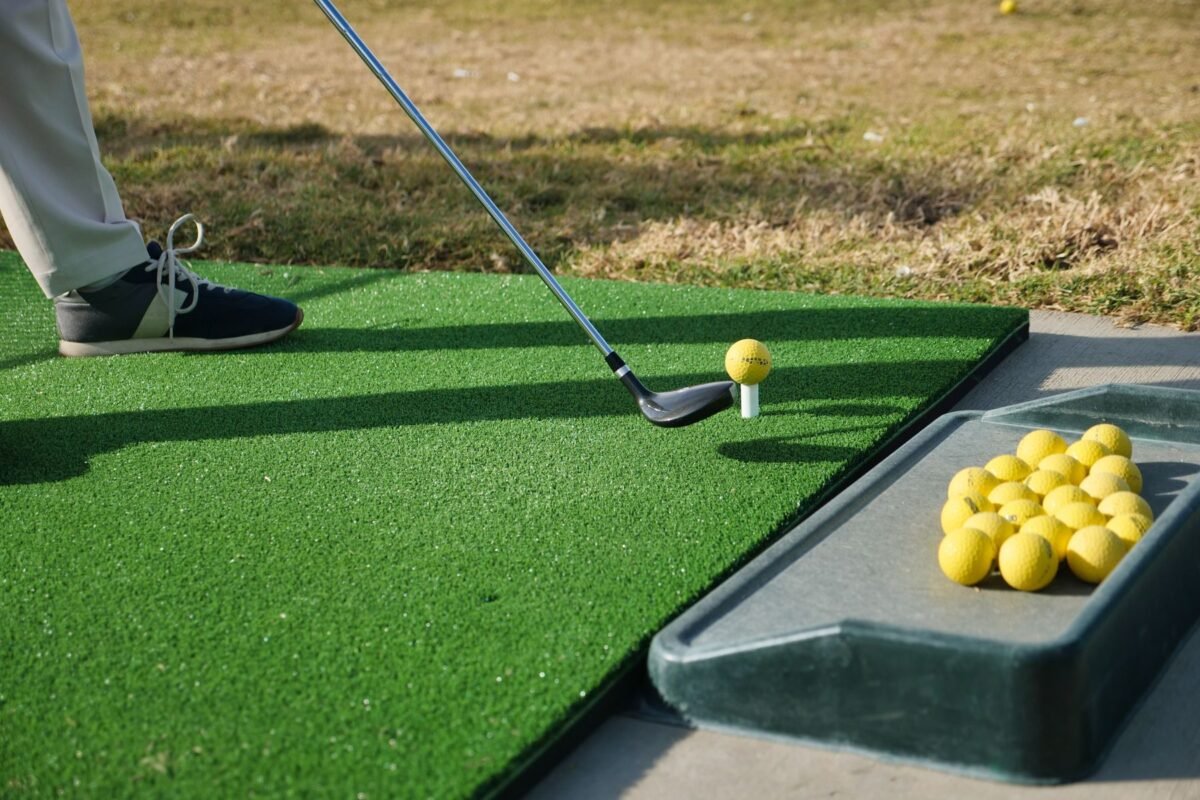

    Projection follows the same logic. Mount the projector where no swing can ever reach it, align it so the player does not throw a shadow across their own shot, and choose brightness with the room lighting in mind, because a washed out image undoes everything else in the brief. Flooring completes the picture: a quality hitting strip that absorbs real force, with comfortable standing surfaces for the rest of the group, protects both joints and repeat bookings.

    Launch monitors and systems that shape the bay

    The model and mounting position affect the layout. The Trackman 4 sits behind the ball and needs depth for its radar setup. Foresight’s Falcon is ceiling-mounted and has its own clearances and lighting guidance. Confirm dimensions for the exact hardware, finished surfaces, handedness and planned use before building partitions. Trackman space recommendations and Foresight Falcon installation manual.

    Software carries the commercial load. Course libraries, closest to the pin contests and league modes keep a group of mixed abilities busy for a full booking, and they are the reason a bay sells food and drink rather than just data. Specify the licence with the same care as the hardware.

    Sound, lighting and comfort

    Impact noise is the complaint nobody budgets for. A driver into a screen, repeated hundreds of times across a full evening of bays, wears down neighbouring tables, staff and, in shared buildings, other tenants. Acoustic panelling, carpeted floors, soft ceiling treatments and physical separation between bays keep the venue at a hum rather than a thud. If the site shares walls, treat sound as a lease clause as much as a comfort issue.

    Lighting should flatter both picture and player: bright and even over the hitting strip for camera systems that need it, warmer and dimmer over the seating so the room feels social rather than clinical. Ventilation matters more than most golf simulator bay design checklists admit, because a sealed room full of swinging bodies heats up quickly and a stuffy bay shortens dwell time.

    Seating, spend and the golf simulator bay design budget

    Seating is revenue. A bay with a sofa, a table and a second screen for scores holds a group for the whole booking and sells another round of drinks; a bay with a single bench holds a lesson. Plan the hospitality offer alongside the layout, because wet and dry spend is what turns bay hire into a business, a point our guide to golf club food and beverage profit makes in detail. Winter is when the layout earns hardest, and the golf winter revenue playbook covers how to fill the diary once the clocks change.

    A National Golf Foundation survey of US facilities reports that 70% of respondents with simulators saw a positive financial impact, with about seven months cited as an average. This is US survey evidence, not an estimate of full UK payback. Budget for enclosure, sound, software and upkeep as well as the monitor, and model the bay’s payback on local utilisation. National Golf Foundation US survey.

    Frequently asked questions

    Before approving golf simulator bay design, test the available swing space from both sides and check what happens near fixed screens, doors and seating. The same room dimensions do not guarantee the same usable space.

    How much space does golf simulator bay design need?

    Enough for the tallest customer to swing a driver freely: generous ceiling height, width for both right and left handed players, and depth for ball flight, the hitting position and seating behind. A room that only suits irons will limit bookings and repeat visits.

    Which systems suit a commercial bay?

    TrackMan, Foresight Sports, Golfzon, Full Swing, SkyTrak, TruGolf, Uneekor and AboutGolf all appear in UK venues. Choose on bay depth, ceiling height, lighting tolerance and software licences rather than on headline accuracy claims alone.

    Do simulator bays pay for themselves?

    The 70% and roughly seven-month figures come from a survey of US facilities. For a UK venue, forecast installed costs, software, staffing and realistic bookings to estimate when the investment could be recovered.

    How loud is a simulator bay?

    Loud enough to plan for. Ball strike on a screen carries through walls and floors, so acoustic panels, carpet and separation between bays belong in the design budget from day one, especially in shared buildings.


    Sources: Grand View Research’s UK outlook, Credence Research’s UK estimate, NGF US survey, and the linked manufacturer and HSE guidance.
